Sage 200:Bill of Materials Items
All of the following functionality requires the PostTrans Manufacturing Module.
PostTrans imports Bill of Materials Items, which could be manually entered with the assistance of in-cell
searching, using copy and paste,
imported from CSV file or extracted from
Sage 200 using the Extract button.

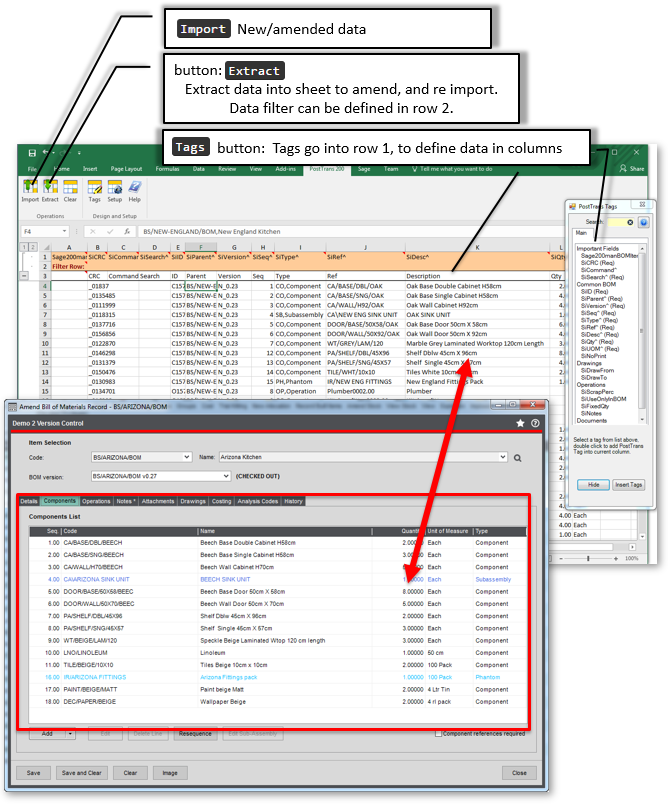

Extract/Import Sage 200 Bill of Materials Items
Explanation of this type of Import
This sheet allows the user to extract/create Bill of Materials (BOM) Item records, the child of BOM Records, which populates the “Components” and “Operations” Tabs of Sage 200 BOM window. The lines are assigned types, for the types of Components and Operations:
- CO,Component
- SB,Subassembly
- PH,Phantom
- CC,CompComment - Comment
- CS,CompCommentShow – Comment with ‘Show comment line in ‘enquires/reports’ ticked
- CD,CompDoc – Document, press Space + Tab in SiRef column to select file
- OP,Operation
- OC,OpComment - Comment
- OS,OpCommentShow – Comment with ‘Show comment line in ‘enquires/reports’ ticked
- OD,OpDoc – Document, press Space + Tab in SiRef column to select file
The SiParent Column should have the BOM code in it, which each item belongs to.
The In-Cell Searching in this sheet is of great help. To add an item to an extracted build you only need insert a line and enter the component ref in the SiRef column. PostTrans will by default assume it is a Component to search for. Having selected a component, it will set SiParent to the same ref as line above, scan for the next appropriate sequence number, and fill in type (SiType) “CO,Component”. The user then can enter the Qty for the BOM item.
If the user wishes to enter a Subassembly, then SiType is set to SB,Subassembly, then the search in SiRef will search just for Subassemblies.
To speed up data entry. Entering “,” in SiRef, before the Subassembly code, will force the line to be a Subassembly. SiType will be set to SB,Subassembly automatically.
These short cuts can be accessed in Setup

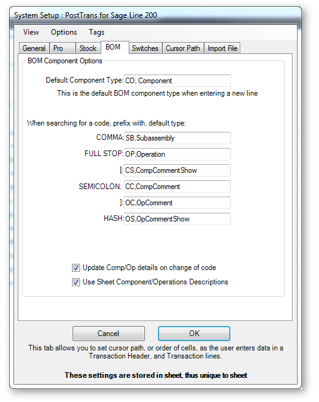

BOM Options in Setup window
Items can be deleted from a BOM by entering an X in the SiCommand column, and pressing Import button.
Version Control
If version control is turned ON then multiple version will be listed. The extraction process will allow the user to filter the BOM records by version status New, Active, Obsolete, Retired, Hidden or get the latest version.
A new version can be created by entering following values in the SiCommand column:
- X,Delete BOM line,
- N,New Version,
- A,Activate Version,
- C,Create Empty and Activate,
- R,Retire
Care must be taken
When BOM components are extracted the column SiID is populated with the BOM Component Line ID. This is then used by PostTrans to update any edits to the same Component/Operation Line within the BOM. Thus any part of the line can be edited. If the SiID does not relate to the current BOM then it is ignored and treated as a new line in BOM, and thus added to BOM.
If SiID is empty PostTrans will create a new item within the BOM.
Important
The BOM Components must be in BOM Code (SiParent) order. If you extract the BOM, and then sort into different order, you need to put back to BOM Code order before import.
Demonstration Video
Sage 200 – Edit Bill of Material using PostTrans
| |
0:00 |
Video Introduction |
| |
1:50 |
Opening Stock/BOM Template |
| |
2:30 |
Create New Stock/BOM |
| |
4:10 |
Import New Stock/BOM |
| |
5:10 |
Edit other BOM Fields |
| |
5:44 |
Extract BOM Items and Sub-Assemblies |
| |
7:30 |
Edit BOM Items |
| |
8:00 |
Add new item to BOM |
| |
10:00 |
Import changes and view in Sage 200 |
| |
11:20 |
Copy, and Edit, BOM items to new BOM |
| |
14:20 |
Quick Select BOM Item Type |
| |
16:00 |
Import Copied BOM Items |
Demonstration Video:Editing BOM Items with Version Control
Sage 200 – Edit Bill of Material with Version Control using PostTrans
| |
0:00 |
Video Introduction |
| |
1:00 |
Open BOM Version Sheet |
| |
2:00 |
Create a New BOM Version |
| |
3:00 |
Edit a BOM Items to create new Version |
| |
4:30 |
Import New Edited Version |
To use the template, with Sage 200, install PostTrans. Download
Trial with Sage demo company. Purchase a month subscription for Live Sage Company. Price
Watch the On-line Training course on how to use and customise the templates.
Apart from column A these fields can be rearranged, hidden, and more columns mapped by using the Tags button to insert new tags. See 'Template Structure' section below.
Template Structure for Static Data
The template must have tag ‘Sage200manBOMitem’ in cell A1 to instruct PostTrans that we are interested in
Sage 200 Bill of Materials Items, and that the sheet is a PostTrans Template.
Pressing Import or Extract on a blank sheet will either open an existing
example or create basic template for you to customise.
Row 1 contains a series of tags, which denote to PostTrans the data to be read/written in each column. These tags, and data columns can be rearranged to
suit your needs, and the tags are added using the Tags button.
See on-line Training
Deleting the Tag name, in the cell, from this row removes the Sage 200
mapping. Table of Bill of Materials Items Tags

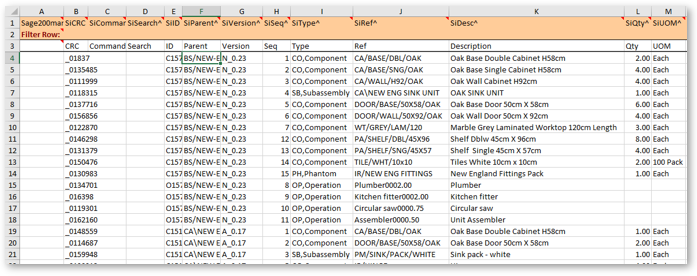

Close up of template Sage200manBOMitem for Bill of Materials Items
Hovering over these tags, in row 1, will show a comment which explains the tags purpose, data type and any other useful details.
Common Features
In-Cell Searching
Any Tag ending with ^ with have a in-cell search facility to look up associated values. Use SPACE + TAB to see all values, or SPACE and
TEXT to perform a text search on description.
These are returned to the cell as "CODE, DESCRIPTION". PostTrans
only uses the CODE and ignores the comma and anything after it, thus data from a field
would only need the CODE part of the data if from an external imported
file.
In-cell Searching can be turned off by removing the ^ from the end of the tag name, or name in first line of comment (Header cells) to disable in-cell searching for a single column, or header cell.
All in-cell searching can be turned off in Setup. In-cell
searching.
Extracting the Data
The data extracted using the Extract button can be filtered, by entering criteria in row 2. Hover over cell A2 for instructions.
Extracting Data
In addition to this some sheets have a SiSearch tag/column. In this case the user can paste a list of codes in column, and press Extract button, to extract those records to the sheet. Entering a single code in this column will extract a single record.
Amending Bill of Materials Items Data
Having extracted data, the user can now simply edit the Bill of Materials Items in Microsoft Excel, before re-importing it back into
Sage 200.
PostTrans uses the tagged column SiCRC to detect changes in rows.
Therefore,
only records/rows which have changed since extraction are updated. If
you add or delete a tagged column, PostTrans will treat ALL rows as having
changed, and thus ALL records will be updated on next Import.
Importing the Data
Simply press the Import button to validate and import the data into
Sage 200.
PostTrans will read the Header cells and then process the rows of data until SiParent
column contains no data. The Sage Company imported into can be set in the Setup window.
PostTrans ONLY edits those fields listed on the sheet when importing, thus
any existing values, on a record, are unaffected. New records may
have default values for certain fields.
File Import Button
This can be enabled in Setup to easily import cvs, or fixed length files, into sheet for importation. Formula can also be added, or macros/VBA
to manipulate this data before importation. Import from CSV file.
Validation
Any values and associated codes will be invalid during import.
The cursor will be moved to highlight any problems in data.
Evaluation and License
This functionality will work with Sage Demo data without a license. A license is required to import into any other Sage Company.
Pricing
What else can I do?
Other Sage 200 Extract/Import types
Frequently Asked Questions?
Got another question? It may well be covered on our Frequently Asked Questions page.
Other Useful Topics
Clear Transaction and copy down formula
Not all these tags/columns are needed. The table below lists the required and recommended:
|
Tag Name
|
Data Type
|
Description
|
|
Important Fields:
|
|
Sage200manBOMItem
|
Text Req
|
Returns `POSTED` if Trans line has been posted and will be ignored if `POSTED` (required). Also reports errors/warnings in data row
|
|
SiCRC
|
Text Req
|
Contains CRC number to help PostTrans detect changes in current row.
|
|
SiCommand^
|
Yes/No
|
Delete record if "X", or COMMAND if versioning is on. COMMAND should always be issued on BOM first line
In Cell Searching values:Command
X, Delete Line
N, New Version
A, Activate Version
C, Create and Activate
R, Retire
|
|
SiSearch^
|
Text 30 Req
|
Search for record by entering code (CAPS LOCK on to get Sub-Components) or pasting list, at top of column, and pressing Extract button
In Cell Searching values in table ManBOMCode
|
|
Common BOM:
|
|
SiID
|
Integer Req
|
Record ID. This is used to update BOM resource record in Sage 200. If the Parent code has changed, i.e. created new record, then it will be ignored and new record created with ID written back.
|
|
SiParent^
|
Text 30 EOF Req
|
BOM code
In Cell Searching values in table ManBOMCode
|
|
SiVersion^
|
Text 50 Req Read
|
Status and Revision No applied by system. A=Active,H=Hidden,N=New,O=Obsolete,R=Retired
Changes in this cell will recalc other cells. Delete ^ to disable this calculation.
|
|
SiSeq^
|
Integer Req
|
Sequence within BOM/Operation, this should not be edited. See notes
Changes in this cell will recalc other cells. Delete ^ to disable this calculation.
|
|
SiType^
|
Text 2 Req
|
Type of line. The default value can be set in Setup, un der BOM tab
In Cell Searching values:1BOM Line Type
CO, Component
SB, Subassembly
PH, Phantom
CC, CompComment
CS, CompCommentShow
CD, CompDoc
OP, Operation
OC, OpComment
OS, OpCommentShow
OD, OpDoc
|
|
SiRef^
|
Memo Req
|
Stock/Operation/Drawing Code/Comment/Filename. If Attachment then SPACE + TAB to find file.
In Cell Searching values in table ManBOMSiCode
|
|
SiDesc^
|
Text 60 Req
|
Description. Setup 'Use Sheet Component/Operations Descriptions' makes PostTrans use this description when importing components. Operations description is ignored
Changes in this cell will recalc other cells. Delete ^ to disable this calculation.
|
|
SiUOM^
|
Text 20 Req
|
Componnet UOM
In Cell Searching values in table BOMuom
|
|
SiQty^
|
Double Req
|
Component Qty or Operation 'Qty per run'
Changes in this cell will recalc other cells. Delete ^ to disable this calculation.
|
|
SiNoPrint
|
Yes/No
|
Do not print Operation or comment
|
|
Drawings:
|
|
SiDrawFrom
|
Date
|
From date on Drawing
|
|
SiDrawTo
|
Date
|
To date on Drawing
|
|
SiScrapPerc
|
Double
|
Scrap Percentage
|
|
SiUseOnlyInBOM
|
Yes/No
|
Use only in BOM module
|
|
SiFixedQty
|
Yes/No
|
Use only in BOM module
|
|
SiNotes
|
Memo
|
Component Notes
|
|
Operations:
|
|
SiOpSubContract
|
Yes/NoTF
|
Operation Sub Contract Flag
|
|
SiOpDoNotPrint
|
Yes/NoTF
|
Operation Do Not Print Flag
|
|
SiOpOverLapQty
|
Double
|
Operation OverLap Qty
|
|
SiOpShrinkPerc
|
Double
|
Operation Shrink Perc
|
|
SiOpOverlapPerc
|
Double
|
Operation Overlap Perc
|
|
SiOpRunH
|
Integer
|
Operation Run Hours
|
|
SiOpRunM
|
Integer
|
Operation Run Minutes
|
|
SiOpRunS
|
Integer
|
Operation Run Seconds
|
|
SiOpDelayH
|
Integer
|
Operation Delay Hours
|
|
SiOpDelayM
|
Integer
|
Operation Delay Minutes
|
|
SiOpDelayS
|
Integer
|
Operation Delay Seconds
|
|
Documents:
|
|
SiDocPATH^
|
Text 255
|
Document path. Press space and tab away to search for Document, f and Tab away to seelect folder
In Cell Searching values in table BOMDoc
|
Req = Field is required EOF = End of file, Stop when no more values
With data type Yes/No fields, if cell starts with 'y' or 'Y' is taken as TRUE
Where ^ denotes a In Cell Code Search, delete ^ at end of tag, to turn off code search
All Text fields are trimmed (spaces before) by default. Add ' to the end of the tag name to stop this.
